Portland Plans to Make Protected Bike Lanes Standard Street Infrastructure

The bulk of the guide lays out different street cross-sections and suggests seven basic designs. This is meant to help city staff determine what’s possible given nearly any street configuration they come across — from a 76-foot wide, two way road to a 44-foot one-way road. The final guide will include an online spreadsheet tool that will allow engineers and project managers to plug in a specific cross-section and receive design ideas that will fit.

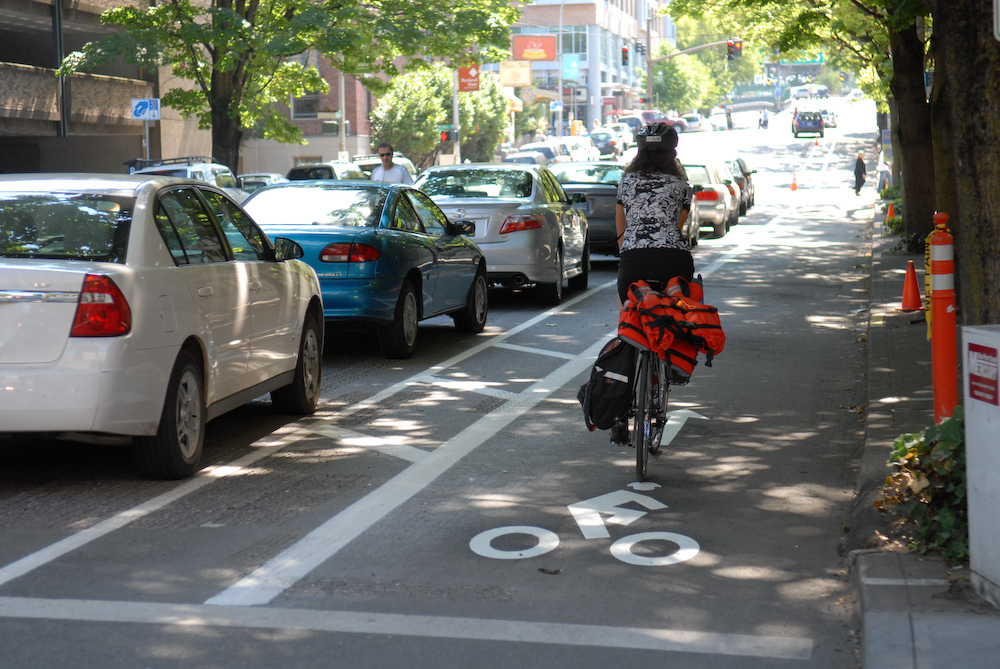

Let’s say PBOT plans to redesign a 36-foot wide roadway like NW Thurman, which today has two vehicle lanes and two lanes used for parking cars. Project staff could turn to this new design guide and see how to layout the street with six-and-a-half foot bike lanes protected from motor vehicle traffic with a one-and-a-half foot buffer zone that could be filled with a cement curb or plastic delineator wands.

Where designs beyond plastic posts make sense, this new guide will help PBOT determine what to use. It includes guidance on other materials that can be used for protection: traffic separators (curbs), concrete islands, planters, or parked cars.
