Bus Lanes Are the New Parking Lanes

American cities are getting smarter about using curb space to prioritize transit, biking, and walking.

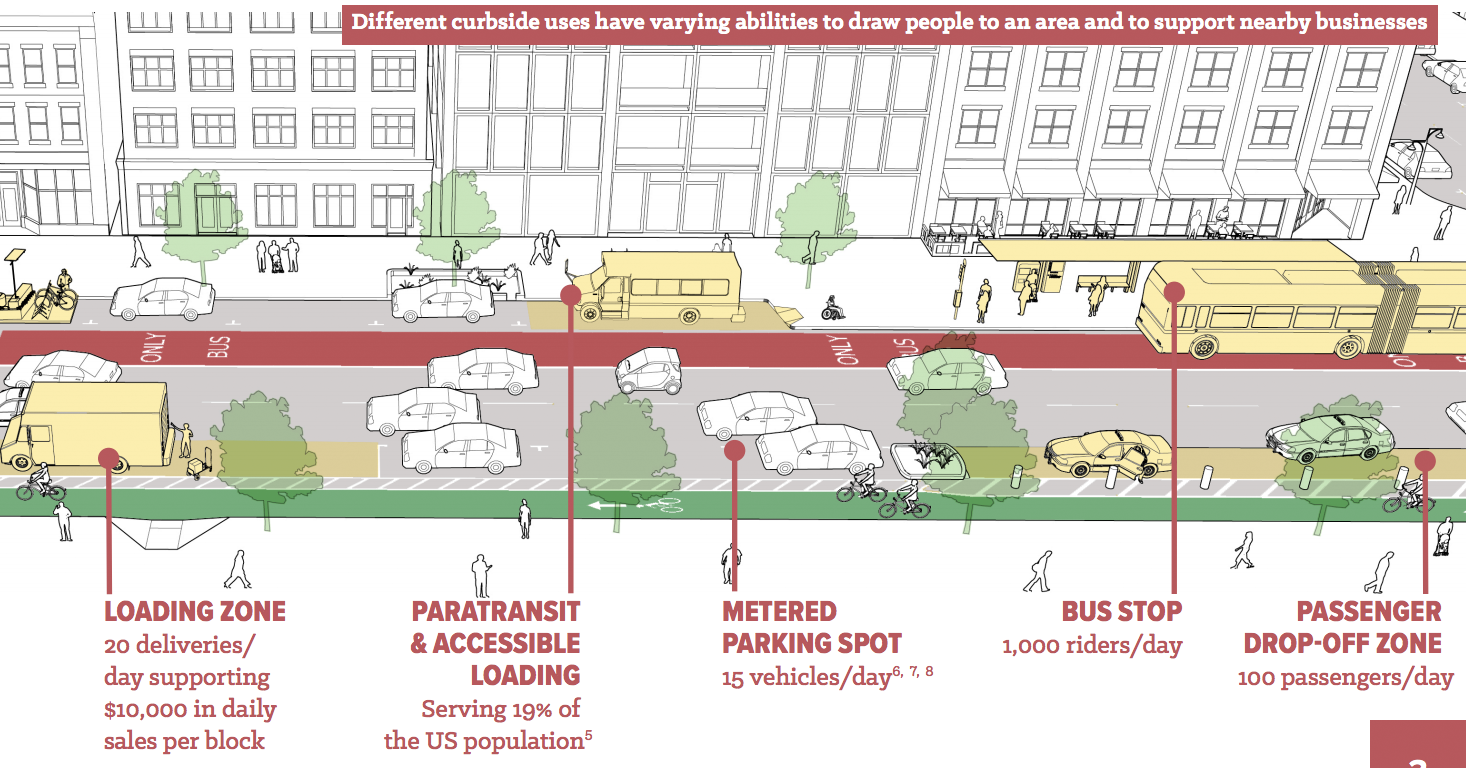

Motor vehicle parking usually isn't the best use of scarce curb space in crowded cities. Graphic: NACTO
Motor vehicle parking usually isn't the best use of scarce curb space in crowded cities. Graphic: NACTO

For a long time, American cities didn’t put much thought into what to do with the space along the curb. On streets in commercial areas, curb access was for metered parking. In residential areas, it was for free parking.

But the curb serves purposes that extend far beyond car access. It’s where bus riders board and disembark, for instance, or where protected bike lanes typically make the most sense. American cities are getting smarter about how to use the curb, and in a new white paper, the National Association of City Transportation Officials lays out strategies to get the most out of this precious space [PDF].

NACTO recommends creating a hierarchy of uses for different street contexts, which can inform decisions about how to allocate the curb. For commercial areas where customer access and foot traffic are paramount, modes of travel that move more people in less space should be prioritized.

Two metered parking spaces might top out at 30 cars turning over per day, for instance, while a bike-share station that replaces them could be used by 40 people per day. A dedicated bus lane might speed service and improve access to a commercial corridor for thousands of people.

Even if the bus lane isn’t by the curb, cities need to rethink curb space to ensure the bus lanes work well. A turn pocket, for instance, can prevent drivers from blocking a bus lane at the approach to an intersection, like this example in San Francisco:

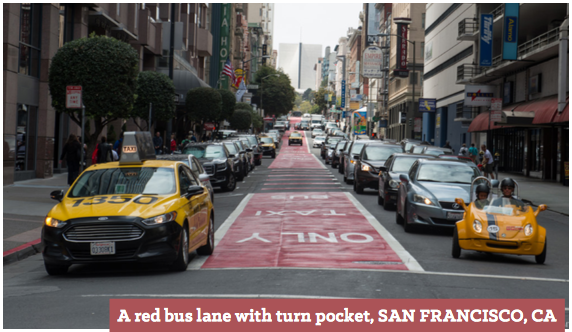

Carving out just a little curb space for a right turn lane can speed up bus service on crowded commercial corridors. This example is from San Francisco. Photo: NACTO
Photo: NACTO

Prioritizing spatially efficient transit can help commercial areas thrive. But business owners often prize access for customers who come by car. NACTO recommends conducting “arrival mode surveys” to demonstrate the importance of access by other means.

In Los Angeles, for instance, business owners on Cesar Chavez Street guessed that 36 percent of their patrons arrived by car and none arrived by transit, NACTO reports. However, a city survey of shoppers on the street found that nearly half arrived by transit and only 7 percent drove.

To free up the curb, it can’t be reserved for people to drive up and park right next to their destinations. Metered parking can be shifted to side streets, and so can deliveries. Loading zones don’t have to be directly in front of storefronts. In New York City, the DOT surveyed merchants along one bus corridor and found many would prefer loading zones farther away from the store in exchange for longer time limits.

For commercial streets that retain metered parking, dynamic pricing is the key to maximizing the public benefit. Setting parking meter prices to respond to demand can cut congestion and improve transit service on the corridor by reducing the time drivers spend cruising for open spots.

There is no magic formula, but thoughtfully managing curb space to prioritize local needs and conditions, not private car access, will help more people get around crowded cities while improving access to commercial areas.
